If your Toyota RAV4 keeps flipping between high and low beams on its own and it’s driving you nuts on a dark backroad, you’re not alone. Toyota’s automatic high beam system is genuinely useful in a lot of situations, but plenty of drivers just want to control their own high beams the old fashioned way. The good news is you can turn off the automatic function without losing manual high beam control entirely.
Automatic High Beams vs. Automatic Headlights
Before you go digging through menus, it helps to know that the RAV4 actually has two separate “automatic” lighting systems, and mixing them up is the number one reason people can’t find the setting they’re looking for.
Automatic headlights are controlled by the rotary knob or switch near the driver’s door. Turning it to “AUTO” tells the car to turn your regular headlights on and off based on ambient light, like when you drive into a tunnel or when the sun goes down. This has nothing to do with high beams.
Automatic High Beam (AHB) is part of Toyota Safety Sense, and it’s the system that switches between high and low beams for you depending on oncoming traffic and vehicles ahead. This is the feature most people mean when they say their RAV4’s high beams “won’t stop turning on and off.” It’s this system, not the headlight knob, that you need to disable.
This is similar in concept to how Toyota bundles safety features across its lineup. If you’ve read about the pre-collision system with pedestrian detection on the Corolla, you already know Toyota Safety Sense controls a lot more than just your headlights.
Where the Automatic High Beam Control Is Located
On every RAV4 from the 2019 redesign through the current generation, Automatic High Beam is engaged and disengaged using the turn signal stalk on the left side of the steering column, not a dashboard button and not a touchscreen menu. That trips up a lot of new RAV4 owners who go hunting through the infotainment system first.
Here’s how the stalk actually works:
- Pull the stalk toward you and release it for a momentary flash of the high beams (this always works, automatic or not).
- Push the stalk away from you to the first detent and it stays there, this turns on manual high beams that stay on until you pull it back.
- Push the stalk away from you past that first detent, until you feel it click into a second position, and that’s what activates Automatic High Beam mode.
To turn off the automatic function, simply pull the stalk back one click, from the far “AUTO” position to the normal position. You haven’t lost anything. Manual high beams still work exactly like they did before, you just push the stalk forward when you want them on and pull it back when you don’t.

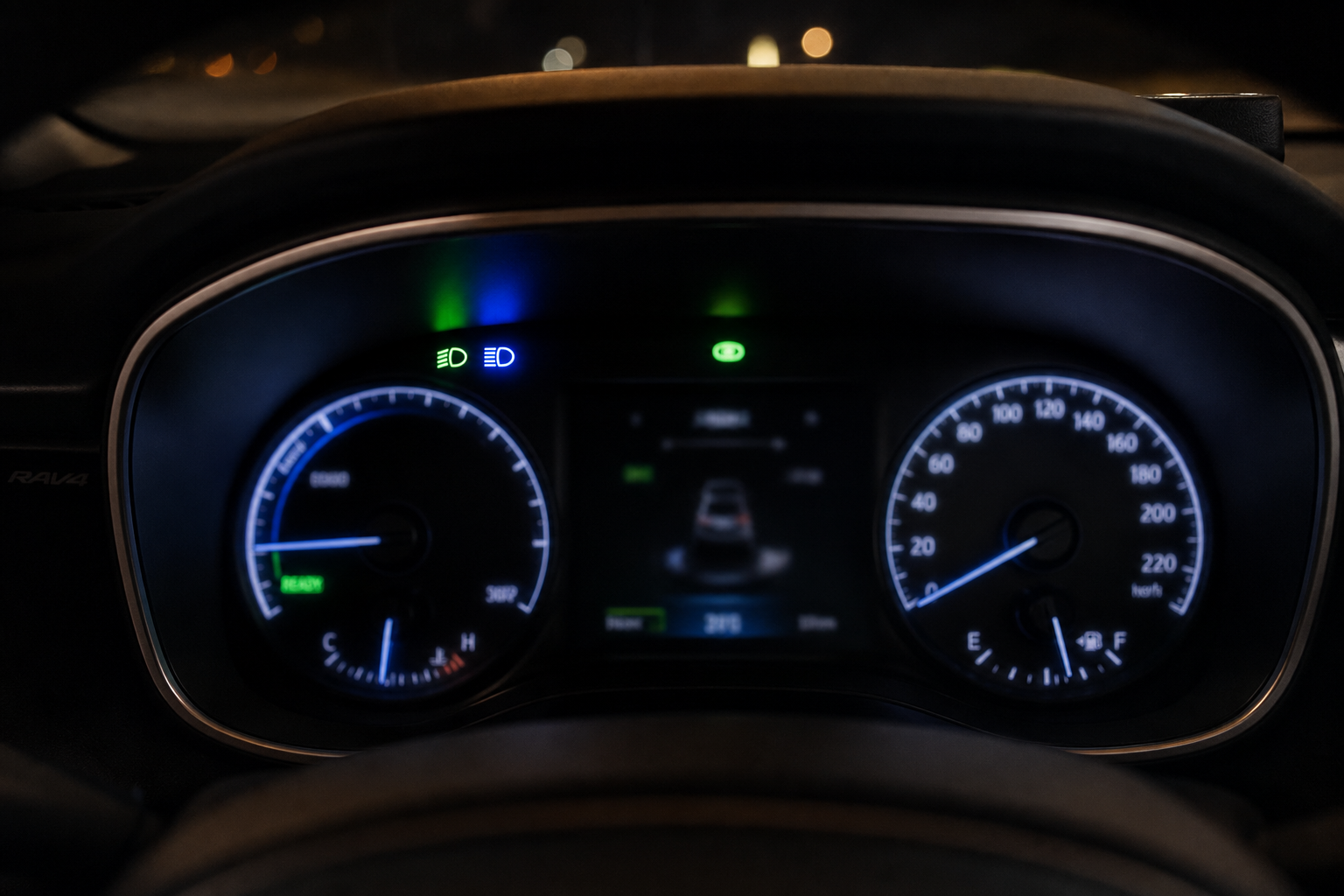

How to Tell the System Is Off
Your instrument cluster gives you a clear visual cue either way, so you never have to guess which mode you’re in.
When Automatic High Beam is active, you’ll see a green “AUTO HB” indicator light in the gauge cluster. When the system has actually switched the high beams on automatically because the road ahead is clear, that indicator typically shows solid green along with the standard blue high beam icon.
Once you’ve disengaged the system, that “AUTO HB” light disappears completely. If you then manually turn on your high beams with the stalk, you’ll just see the regular blue high beam indicator with no “AUTO” text attached to it. That’s your confirmation the car is running purely on manual control.
If you ever see the “AUTO HB” light flashing or stuck on with no vehicles around, that usually means the camera behind your rearview mirror is dirty or obstructed. Cleaning the windshield in front of that camera resolves it most of the time.
Model Year Differences to Know
The stalk-based method described above applies to the fifth generation RAV4, which covers the 2019 through 2024 model years, including Hybrid and Prime trims. Toyota kept the mechanical operation of the turn signal stalk consistent across those years, so if you’ve got a RAV4 from that range, the steps are identical regardless of trim level.
Earlier RAV4 models, specifically 2018 and older, didn’t come standard with Automatic High Beam as part of Toyota Safety Sense unless you had the optional TSS-P package, and the control layout can differ slightly. If you drive a pre-2019 RAV4, check your owner’s manual glovebox card to confirm whether your car even has AHB, since some base trims from that era simply don’t have it.
Toyota also updated Safety Sense from TSS 2.0 to TSS 2.5 partway through the fifth generation lineup, which improved the camera’s ability to detect vehicles at greater distances, but it didn’t change how you turn the feature on or off. The stalk operation stays the same across TSS 2.0 and 2.5 equipped RAV4s.
There’s no separate settings menu buried in the multi-information display for this on the RAV4, unlike some other manufacturers that let you toggle driver assist features through the touchscreen. Toyota keeps this one purely mechanical, which honestly makes it one of the easier systems to control since you don’t have to hunt through submenus.
A Few Practical Tips
If you drive mostly in the city or in areas with a lot of streetlights, you probably don’t need Automatic High Beam engaged much anyway since it rarely gets the chance to kick in. Save it for rural highway driving where visibility actually matters and oncoming traffic is less predictable.
Keep in mind the AHB camera sits right behind your rearview mirror, so a cracked or heavily tinted windshield section in that area can interfere with detection even when the system is technically turned on. If you notice the automatic function behaving inconsistently, that’s often the first place to check before assuming something is broken.
RAV4 Hybrid owners who are already dialing in efficiency settings might also want to check out our guide on using Predictive Efficient Drive on Toyota Hybrid models, since it’s another feature that runs quietly in the background but is worth understanding fully.
And if you’re already going through your RAV4’s less obvious features, it’s a good time to also set up things like the built-in HomeLink garage door opener, which works essentially the same way across most modern Toyota models including the RAV4.
Frequently Asked Questions
Can I permanently disable Automatic High Beam on my RAV4?
Not through any menu or dealer setting, no. The system is designed to reset to its last used state each time you start the car, but many owners find that once you get used to pulling the stalk back one click after starting the engine, it becomes second nature. There’s no dealer flash or hidden setting that removes AHB permanently, since it’s tied into the Toyota Safety Sense hardware.
Why do my high beams still flash off in traffic even after I turned off AHB?
If this is happening, double check that the stalk is actually in the normal detent position and not still pushed into the automatic setting. It’s easy to accidentally bump it slightly, and the difference between the manual and automatic detents can feel subtle until you’re used to it. Confirm by watching for the green “AUTO HB” indicator, if it’s off, the system genuinely isn’t engaged.
Does turning off Automatic High Beam affect any other Toyota Safety Sense features?
No, it’s completely independent. Disabling AHB has zero effect on Lane Departure Alert, Dynamic Radar Cruise Control, Pre-Collision System, or any other Toyota Safety Sense feature. Each one operates on its own separate control, so you can turn off automatic high beams while keeping every other safety feature fully active.
