The Mazda CX-50’s i-stop system shuts the engine off every time you come to a complete stop, and for a lot of drivers, it gets old fast. The jolt when the engine restarts, the slight hesitation before pulling away, the vibration at idle while you’re waiting at a long red light. It’s an irritant that Mazda put in the car for fuel economy credits, not for your driving enjoyment. The good part is that turning it off takes about three seconds. The frustrating part is that it turns itself back on every single time you start the car.
This guide covers both ways to deal with it: the factory button that works for a single drive, and the plug-and-play eliminator module that permanently remembers your preference so you never have to think about it again.
What Is i-stop and Why Does It Reset Every Time?
Mazda calls its auto start/stop system “i-stop.” It’s been standard on Mazda vehicles for several years and carries over to the CX-50 across all trim levels including the 2.5 Turbo. The system is designed to cut fuel consumption and reduce emissions when the vehicle is stationary, which helps Mazda hit regulatory targets.
The reason it resets every time you restart the engine is intentional. Mazda, like most manufacturers, programs the system to default to “on” with every new ignition cycle. There’s no menu option in the infotainment system to change the default. If you want it off, you have to tell it so on every single drive. Mazda isn’t alone here, but it doesn’t make it any less annoying. If you’ve also noticed any engine vibration complaints after the system kicks back in, you might find our article on fixing idle vibration on the Acura MDX useful for comparison, as many auto start/stop related vibration issues share similar root causes.

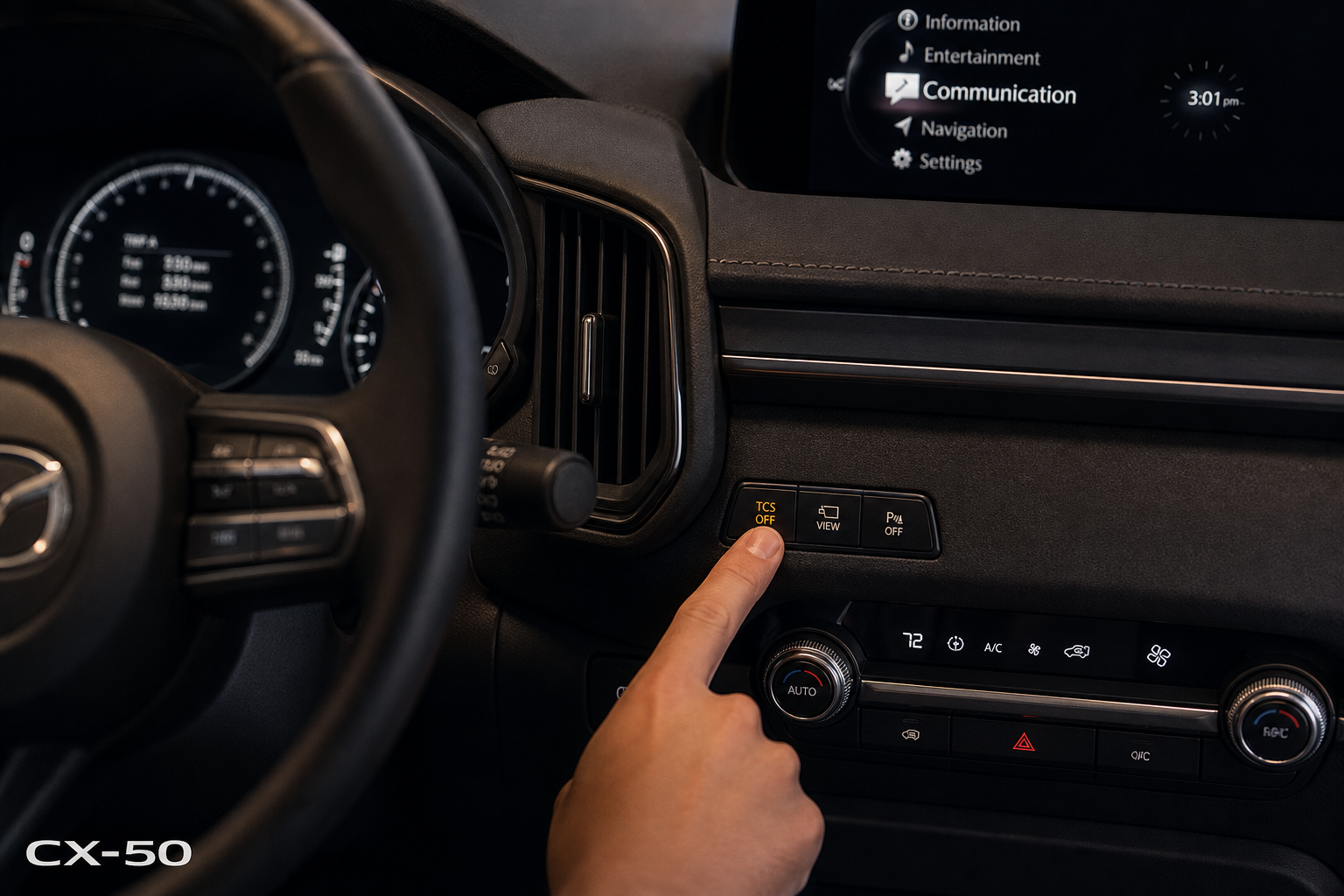

How to Turn Off i-stop Using the Dashboard Button
The factory method is simple. Every CX-50 has a physical button labeled “i-stop OFF” on the center console or dashboard cluster, depending on trim. Here’s how to use it:
- Start the engine normally.
- Locate the i-stop OFF button. On most CX-50 trims it sits in the cluster of buttons near the hazard switch or on the lower console panel.
- Press it once. A yellow indicator light will illuminate on the instrument cluster confirming the system is off.
- Drive normally. The engine will no longer shut off at stops for the rest of that ignition cycle.
That’s it for a single drive. The system will be active again the next time you start the car. If you’re someone who only occasionally finds i-stop annoying, this might be enough. For everyone else, read on.
Does i-stop Affect the CX-50’s Battery or Starter?
Mazda uses an AGM (absorbent glass mat) battery in the CX-50 specifically because the i-stop system cycles the starter far more frequently than a traditional engine. The starter motor is also reinforced compared to a standard unit. So the hardware is built for it. But wear is still wear, and some owners prefer not to add unnecessary cycles to the system, especially in climates with extreme temperatures.
How to Permanently Disable i-stop on the Mazda CX-50

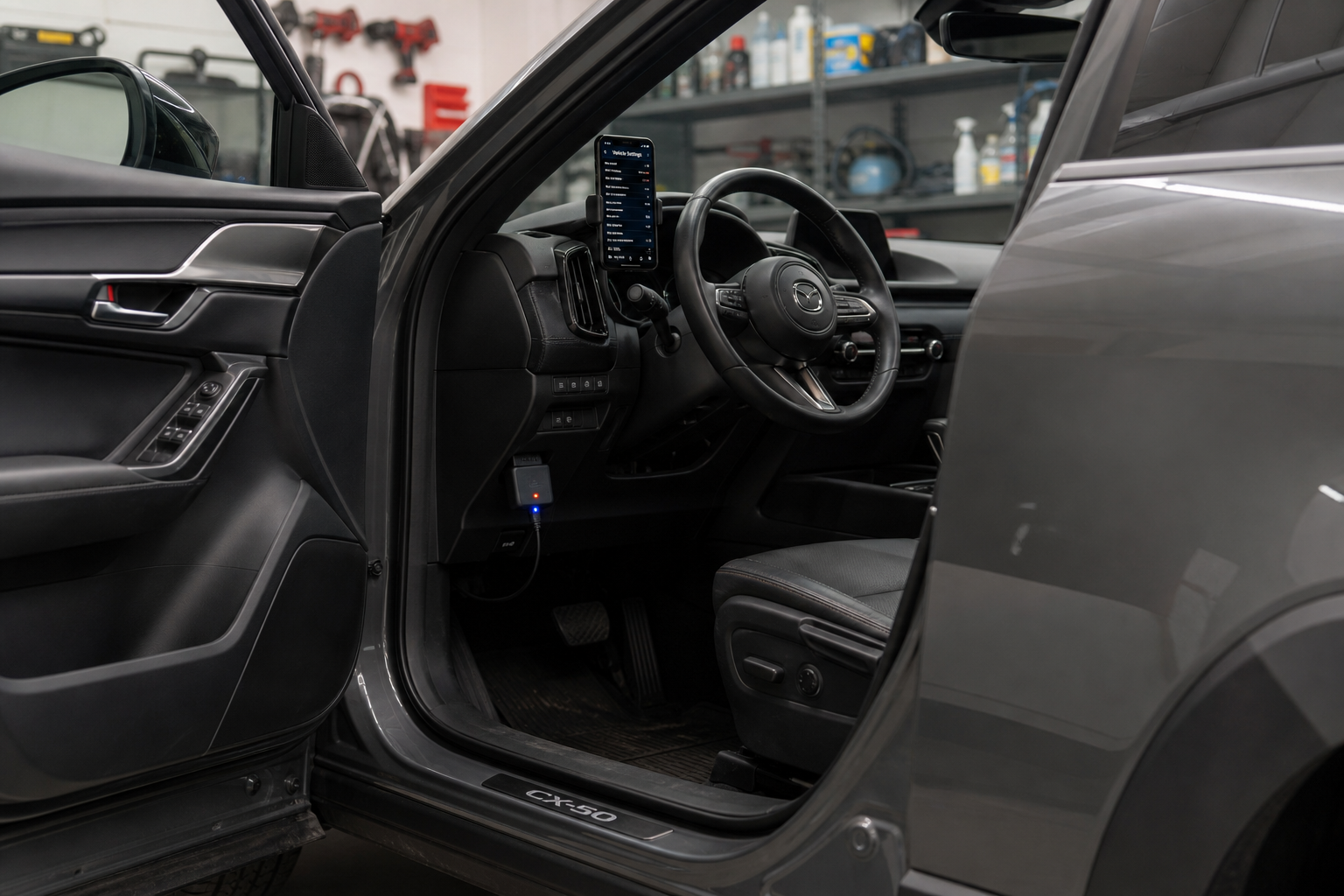

If you want the system off every drive without pressing a button, a start/stop eliminator module is the answer. These are small plug-and-play devices that connect to an existing connector in the car and simulate the button press automatically, every time you start the engine.
No cutting wires. No modifying the ECU. No voiding warranties through physical modification. The module just plugs in and does the work for you.
What to Look For in a CX-50 Eliminator Module
Not every start/stop eliminator works with every vehicle. You want one specifically listed as compatible with the Mazda CX-50. Check the product listing carefully for your model year. The CX-50 launched for the 2023 model year in the United States, and compatible modules are widely available for 2023 and 2024 model years. If you’re driving a 2025 CX-50, verify compatibility before purchasing since mid-cycle electrical updates can affect connector compatibility.
The module should connect to the i-stop button harness connector under the dash or at the button itself. Installation usually takes under 15 minutes with no tools required beyond the ability to locate the connector.
Mazda CX-50 i-stop Eliminator Module
A plug-and-play module that automatically disables the i-stop system every time you start your CX-50, with no button pressing required.
Step-by-Step Installation
- Turn the engine off and make sure the ignition is fully off before touching any connectors.
- Locate the i-stop button. Depending on your trim, it’s either on the lower console panel or in the main switch cluster near the steering wheel.
- Unclip the button’s wiring harness. There’s a small tab on the connector you press to release it. You don’t need to remove the button itself from the panel.
- Plug the eliminator module in line between the harness and the button connector. It’s designed to fit the exact connectors Mazda uses, so it should click in firmly.
- Tuck the module out of sight behind the panel or zip-tie it to keep it secure.
- Start the engine. The i-stop OFF indicator light should illuminate automatically within a few seconds, confirming the module is working.
If the light doesn’t illuminate, double-check that both connectors are fully seated. A half-inserted connector is the most common reason these modules don’t work on the first try.
Model Year Notes for the Mazda CX-50
The CX-50 uses Mazda’s Skyactiv-G 2.5 four-cylinder engine or the Skyactiv-G 2.5 Turbo, and i-stop is standard on both. Here’s what to know by model year:
- 2023 CX-50: All trims have i-stop. Eliminator modules are widely available and well-tested for this year.
- 2024 CX-50: Same system. Compatible with the same modules designed for the 2023.
- 2025 CX-50: Verify compatibility individually. Mazda occasionally updates connector designs in mid-cycle refreshes, so confirm with the seller before ordering.
If you’re also dealing with unrelated Mazda powertrain issues and want to pull codes before heading to a shop, a quality scan tool can save you a trip. Our guide to the best OBD2 scanners for DIY repair covers solid options at every budget.
Is It Worth It?
If you press that i-stop OFF button every single day, yes, an eliminator module is worth it. You pay once and you’re done with the button forever. The installation is reversible, the module stores out of sight, and the car behaves exactly as if you’d pressed the button yourself.
Some drivers are fine with the factory button and just build it into their startup routine, like adjusting mirrors. Others find it grating after the hundredth time. If you’re the type who notices and cares about it, the module is an easy fix.
One thing to keep in mind: disabling i-stop will have a small effect on your fuel economy numbers at the pump, particularly in stop-and-go city driving. Mazda’s own estimates include i-stop operation in their EPA figures. It won’t be dramatic, but it’s real. Most CX-50 owners who disable the system consider it an acceptable trade.
If you’re the kind of driver who likes to fine-tune how your vehicle responds, you might also be interested in throttle response upgrades. Our comparison of Pedal Commander vs ShiftPower vs DTE PedalBox breaks down which throttle controller is worth your money if you want a livelier feel from the accelerator pedal.
Mazda CX-50 i-stop Eliminator
Searches for CX-50 compatible start/stop canceler modules so you can compare options and confirm your model year before buying.
Frequently Asked Questions
Will disabling i-stop affect my CX-50’s warranty?
A plug-in module that doesn’t modify any wiring or software is generally considered non-invasive. Mazda dealers would need to prove the module caused a specific failure to deny warranty coverage under the Magnuson-Moss Warranty Act. That said, if you have concerns, remove the module before any dealer visit. It takes 30 seconds to unplug.
Does the i-stop eliminator work with Mazda’s i-Activ AWD system?
Yes. The i-stop system operates independently of the AWD drivetrain. Disabling i-stop doesn’t affect torque distribution, traction control, or any AWD function. The eliminator only interrupts the signal that would otherwise allow the engine to shut off at stops.
My i-stop light is already on when I start the car. Does that mean i-stop is off?
No, and this confuses a lot of people. The i-stop OFF indicator light being illuminated means the system is currently disabled. If the light is on, the engine won’t shut off at stops. If the light is off, i-stop is active. So what you want to see is the yellow i-stop OFF light illuminated. If you’ve installed an eliminator module, this light should come on automatically within a few seconds of starting the engine.
