The auto start/stop system on the GMC Sierra HD is one of those features that sounds good on paper but drives a lot of owners absolutely crazy. Every time you pull up to a red light, the engine cuts off. Then it restarts with a noticeable shudder when you lift your foot off the brake. On a heavy-duty truck that you might be using to tow, haul, or just get through a long workday, that constant cycling gets old fast.
There is a button to disable it, but here’s the problem: it resets itself every single time you start the truck. You have to press it again on every drive. This guide covers exactly how to shut it off the right way, including a plug-and-play module that takes care of it permanently so you never have to think about it again.
Which GMC Sierra HD Models Have Auto Start/Stop
Auto start/stop (also called Auto Stop/Start or ESS, for Engine Stop/Start) was introduced on the GMC Sierra 2500 HD and 3500 HD starting with the 2020 model year, when GM redesigned the heavy-duty lineup. It carries over on all trims through the current model year, including the base Sierra HD, SLE, SLT, AT4, and Denali.
Both the 2500 HD and 3500 HD share the same system and the same disable method, whether you have the 6.6L Duramax diesel or the 6.6L V8 gas engine. If your Sierra HD is a 2020 or newer, everything in this guide applies to your truck.
If you own a GMC Sierra 1500 and landed here by accident, the process is similar but the compatible eliminator module is different. Make sure you’re buying a module specifically listed for the HD trucks before purchasing anything.
Using the Factory Dashboard Button

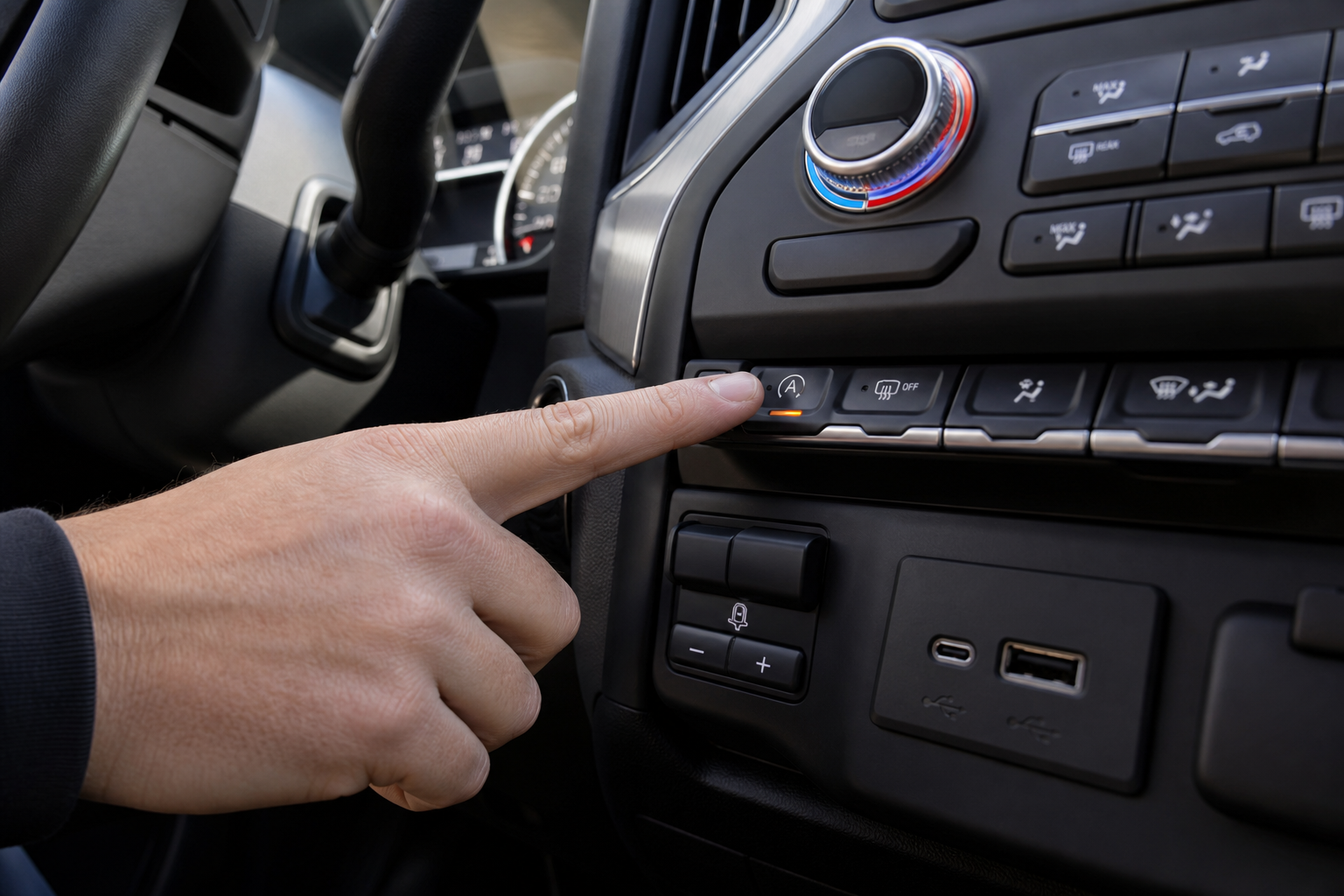

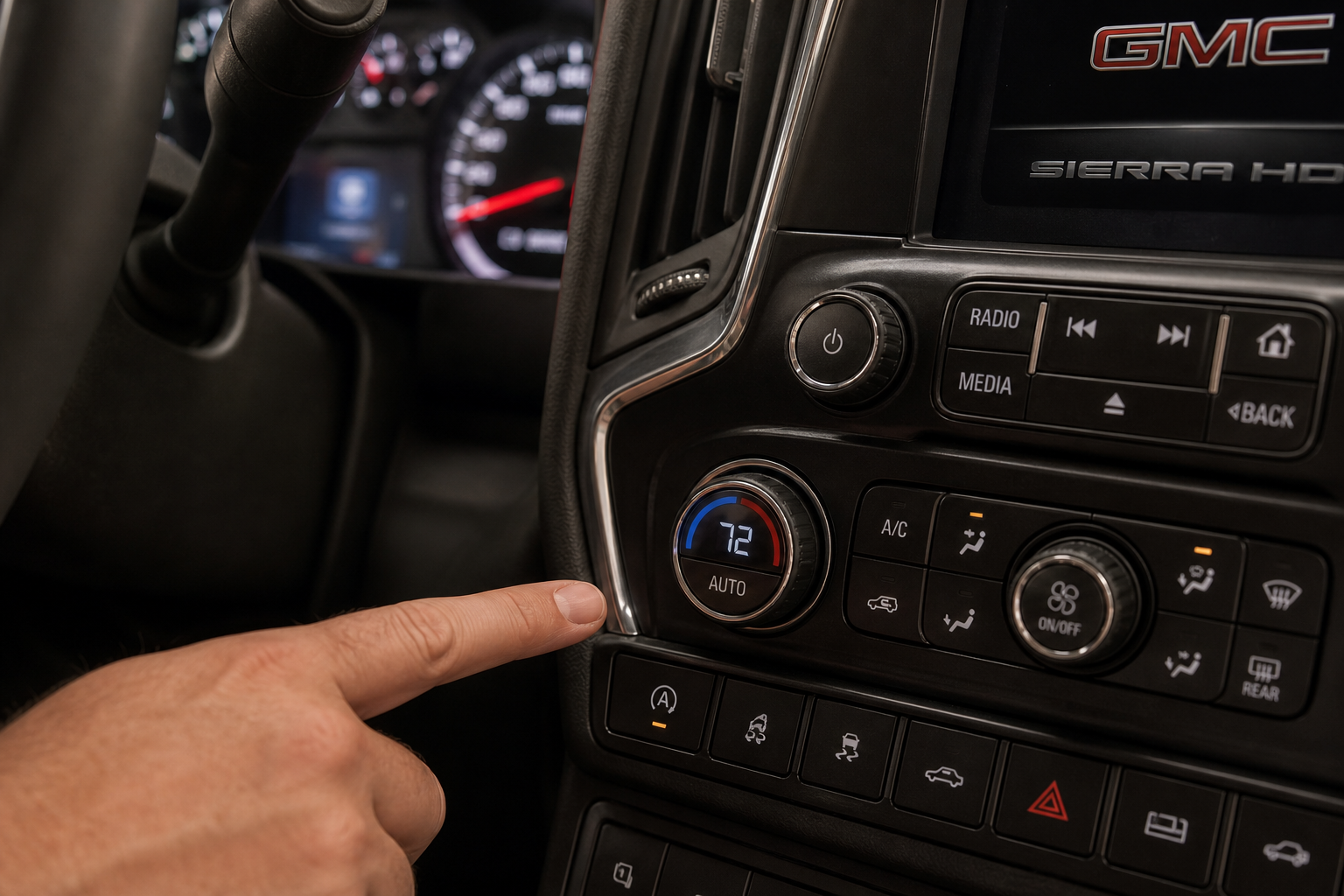

GM did include a manual way to disable auto start/stop. There’s a dedicated button in the center console or instrument panel area, typically labeled with an “A” inside a circular arrow with a line through it. Pressing it once disables the system for your current drive session.
Here’s how to find and use it:
- Start the engine and let the truck fully boot up.
- Look for the Auto Stop/Start button near the climate controls or the switch bank to the left of the steering wheel, depending on your trim level.
- Press the button once. A light on the button or a message in the instrument cluster will confirm the system is off.
- Drive normally. The engine will no longer cut off at stops for the rest of this drive.
This works fine if you only occasionally want it disabled. But the system is designed to default back to on every time you cycle the ignition. GM’s reasoning is fuel efficiency, but for HD truck owners who are often towing heavy loads or running equipment off the engine, that forced cycling is more than just annoying. It adds wear cycles to the starter, battery, and engine components over time.
Why the System Keeps Resetting Itself
The auto start/stop system is tied to the truck’s ignition cycle by design. GM programmed it this way to ensure the system stays active by default for EPA fuel economy testing and compliance. There’s no setting in the infotainment system or instrument cluster menu that lets you permanently change this behavior. It’s not a user preference you can save, unlike something like driver profiles in the Chevy Tahoe and Suburban where personalized settings are retained per key fob.
Some owners have tried resetting or reprogramming the ECU via an OBD2 port, but there’s no supported tune or calibration change from GM that permanently disables ESS on these trucks without voiding warranty or requiring dealer-level software. If you’re curious about what your OBD2 port can and can’t do, our guide to the best OBD2 scanners for DIY auto repair covers the capabilities of different scanner tiers.
The cleanest and most reliable solution for most Sierra HD owners is an eliminator module.
The Permanent Fix: A Start/Stop Eliminator Module

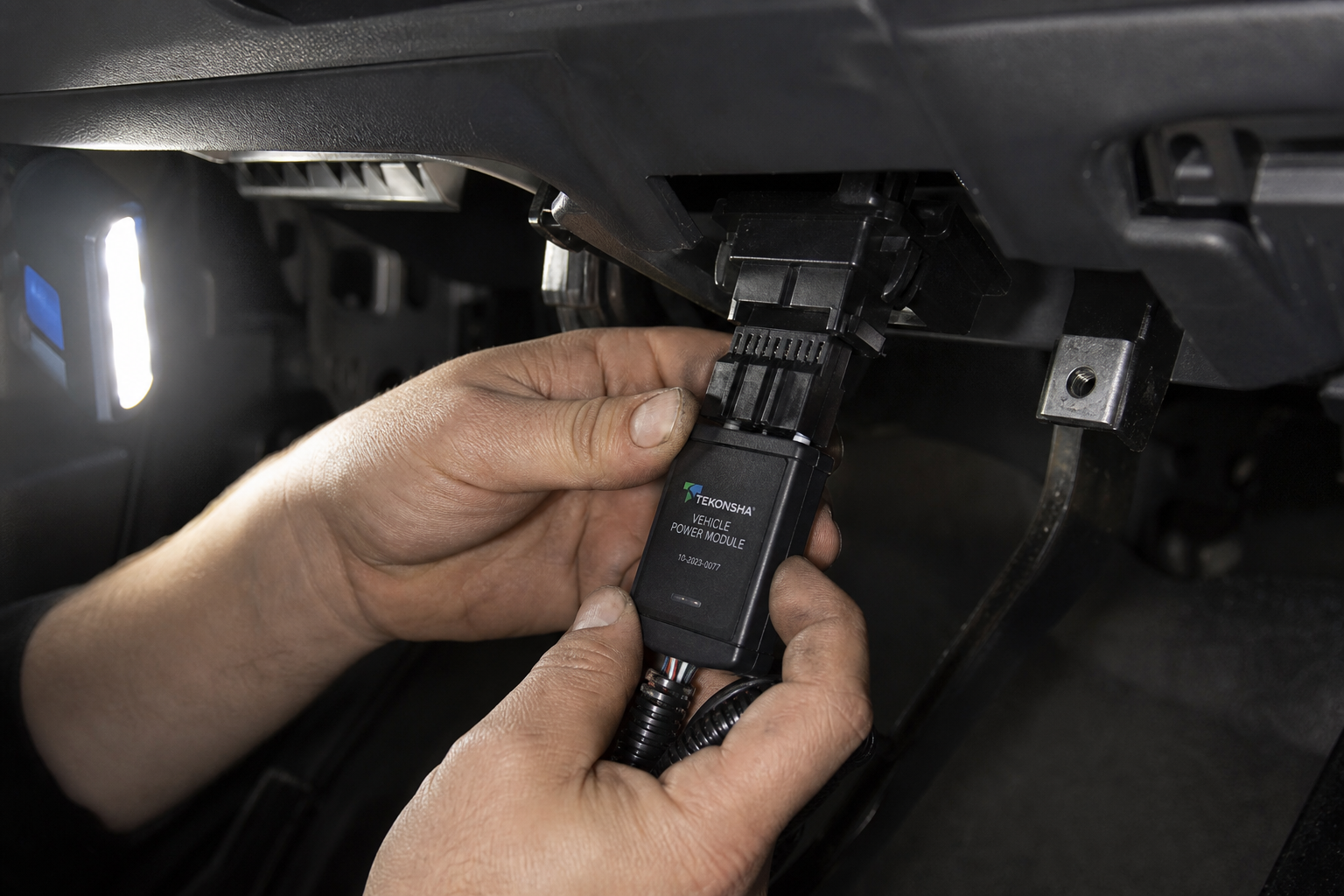

A start/stop eliminator is a small plug-and-play device that plugs into an existing connector in your truck, typically in the fuse box or under the dash, and automatically sends the same signal as pressing the disable button. It does this every time the truck starts, before the ESS system activates. You install it once and forget about it.
These modules don’t require cutting wires, splicing, or any permanent modification to your truck. They use factory connectors and don’t interfere with other systems. If you ever sell the truck or want to restore the default behavior, you just unplug it.
GMC Sierra 2500 HD Start Stop Eliminator Module
A plug-and-play module that automatically disables auto start/stop on every drive without any wiring or permanent modification.
When shopping for one, make sure the product listing explicitly mentions compatibility with the GMC Sierra 2500 HD or 3500 HD for your specific model year. Many of these modules are vehicle-specific because they plug into connectors that vary by make and model. A module listed for the Silverado HD should also work since it shares the same platform, but double-check before buying. Check current pricing on Amazon and verify the included connector matches what’s described in your truck’s year.
Installation Overview
Most Sierra HD eliminator modules install in under 10 minutes. The general process looks like this:
- Turn the ignition off and open the fuse box or access panel described in the module’s instructions. On most Sierra HD trucks, this is the underhood fuse block or the cab fuse panel on the driver’s side.
- Locate the connector identified in the instructions. The module plugs in between the existing connector and its socket, acting as a pass-through.
- Plug in the module, tuck it out of the way, and close the panel.
- Start the truck and confirm that the Auto Stop/Start indicator shows as disabled without you pressing anything.
If your module comes with an optional switch, you can mount it somewhere on the dash or console to toggle the feature manually. Most owners just leave it set to always-off and never touch it again.
Will This Affect Anything Else on the Truck
No. A properly designed eliminator module only mimics the button press signal. It doesn’t reprogram the ECU, alter fuel trims, or interfere with any other system on the truck. Your warranty situation depends on your dealer’s stance, but because no wires are cut and nothing is permanently altered, most owners don’t have issues. If you’re ever in for service, just unplug it beforehand to keep things simple.
It’s also worth mentioning that disabling ESS won’t noticeably affect your fuel economy in real-world driving. The fuel savings from ESS are minimal under normal conditions, and on a heavy-duty truck that’s often loaded, towing, or idling on a job site, the system was probably getting overridden by the truck’s own logic much of the time anyway.
Other Things Worth Knowing About Your Sierra HD
While you’re getting comfortable with the features on your truck, the Sierra HD has a few other systems that are worth understanding. If you have a higher trim with the optional night vision camera, our walkthrough on how to use the night vision system on the GMC Sierra Denali covers how that feature works in practice.
And if you’re due for an oil change and want to reset the oil life monitor yourself, our GMC Sierra oil light reset guide covers all model years from 2014 through 2024 with step-by-step instructions for each generation.
Frequently Asked Questions
Will disabling auto start/stop void my GMC Sierra HD warranty?
Using a plug-and-play eliminator module that doesn’t cut wires or modify the ECU is generally not considered a modification that voids a warranty. However, if a dealer can demonstrate that a device caused a specific failure, they could potentially decline to cover that component. Unplug the module before any dealer visits if you’re concerned. Permanent ECU reprogramming is a different story and carries more risk.
Does the Sierra 3500 HD use the same eliminator module as the 2500 HD?
In most cases, yes. The 2500 HD and 3500 HD share the same platform, wiring architecture, and ESS system. Most eliminator modules that list compatibility for the Sierra HD will cover both. Always confirm by checking the product listing for your specific model year before purchasing.
My Sierra HD doesn’t always activate auto start/stop even without a module. Is that normal?
Yes. The ESS system has several conditions that must be met before it will shut the engine off at a stop. These include the engine being at operating temperature, the battery being sufficiently charged, the climate control load being within certain limits, and the steering wheel being reasonably centered. If any of those conditions aren’t met, the system stays inactive on its own. That’s why some owners notice it more in mild weather and less in extreme heat or cold.
Bottom Line
Pressing the disable button every single time you start your Sierra HD is a minor but genuinely annoying ritual. A start/stop eliminator module is the practical fix. It installs in minutes, costs nothing in terms of ongoing effort, and keeps your truck behaving the way you actually want it to from the moment you turn the key. For a heavy-duty truck that you’re relying on for real work, that’s exactly the kind of simple solution worth having.
Browse GMC Sierra HD start/stop eliminator modules on Amazon and check that the one you choose lists your exact model year before adding it to your cart.
