If the Tire Pressure Management System in the Mercedes-Benz Sprinter is not working properly, you may have to reset the system. Using the image which suits your vehicle, follow one of the options below to re-initialize the TPMS.
First, Check the Recommended Air Levels Needed:
- Refer to the Manufacturer’s Sticker.
- Fill each tire to the recommended PSI/Air Pressure Levels.
- Make sure the spare has the correct amount of air as well.
Make sure all tires are properly inflated to the recommended pressure. You can find the recommended pressure values in the owner’s manual or on a sticker on the driver’s door or inside the fuel filler flap.
To Reset the Warning Light Perform the following steps:
Contents
2019 – 2023 Models

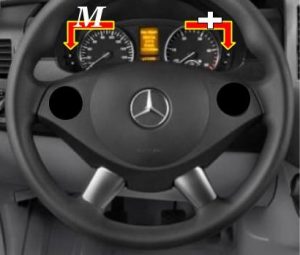

Option 1: Models Without Steering Wheel Controls
- With your vehicle in the ON position without starting the engine.
- Push the M knob located to the LEFT of the dash screen/instrument cluster.
- Stop when you see TPMS on the screen.
- Press the + knob located to the RIGHT of the dash screen/instrument cluster to complete the Reset.

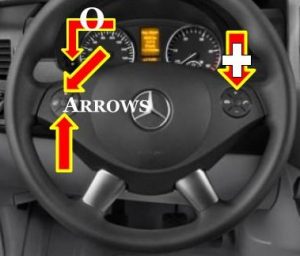

Option 2: Models With Steering Wheel Controls
- With your vehicle in the ON position without starting the engine.
- Press the UP or DOWN arrows located on the LEFT side of the steering wheel until TIRE PRESSURE reads in the dash screen/instrument cluster.
- Press the O knob located directly to the LEFT of the dash until the screen reads MONITOR CURRENT TIRE PRESSURE.
- Press the + button for YES, located on the RIGHT side of the steering wheel.
- You will then see TIRE PRESSURE MONITOR REACTIVATED.

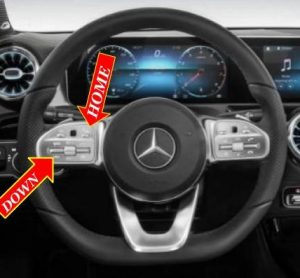

Option 3
- With your vehicle in the ON position without starting the engine.
- Press the HOME button located on the LEFT side of the steering wheel.
- Press the DOWN arrow until you see SERVICE on the dash screen.
- Press OK, located directly above the arrow.
- Press the DOWN arrow to highlight TIRE PRESSURE.
- Press OK.
2006 – 2018 Models
- Insert the key into the ignition and turn it to position “2.” Do not start the engine.
- Locate the “Page” or “Menu” button on the steering wheel.
- Press and hold the “Page” or “Menu” button for a few seconds until the TPMS menu appears on the instrument cluster display.
- Use the “+” or “-” button on the steering wheel to navigate to the TPMS menu option for resetting or initializing the system labeled “Initialize TPMS” or “Reset Tire Pressure.”
- Press the “OK” or “Enter” button on the steering wheel to confirm the reset.
- The system will initiate the TPMS reset process, which may take a few moments.
- The TPMS warning light should turn off, indicating that the system has been reset.
- Turn off the ignition.
2002 – 2005 Models
The Mercedes-Benz Sprinter from 2002 to 2005 typically doesn’t have a direct TPMS (Tire Pressure Monitoring System) that communicates with the vehicle’s electronics.
If the TPMS warning light on your Mercedes-Benz Sprinter stays lit, keep in mind that the outdoor temperature affects how fast the air in the tires will adjust to the proper temperature. If the tire pressure warning light stays illuminated past a week, take it to a repair shop.
TIP: Always keep a tire pressure gauge close by to check your tires just in case the warning light comes on again.
